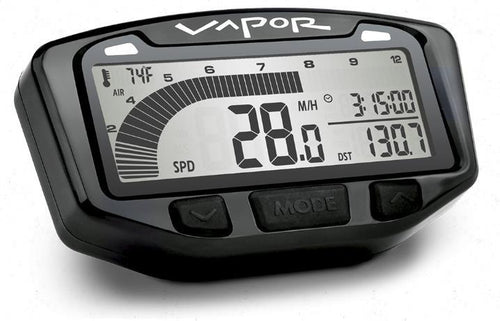

Trail Tech 752-117 Vapor Speedometer/Tachometer/Temperature Kit

The Vapor speedometer/tachometer is a popular choice for both on and off-road enthusiasts. Vapors large digital tachometer bar graph is easy to read. At a small size of 4.2 x 2.3 inches, Vapor is perfect for all types of riding like cross country, trail riding or at the track. The main features include a large RPM graph and speed readout, with much more data built in. At the top, programmable LED lights blink when its time to shift gears or during an over-temp event. Vapor can replace an entire instrument cluster on your dashboard. Vapor displays speed, tach, engine temperature, ambient temperature, resettable distance, clock, ride time, and odometer. Maximum values are displayed for temperature, speed, and RPM (reset trip data to start fresh max values.) Use the built-in stop watch for race training, or resettable trip distance for enduro courses. Installation is straightforward. Use the detailed instructions to fit Vapors sensors to the vehicle and plug them in using the white waterproof connectors. Customize and fine tune Vapor for tire size, tach sensitivity, and trigger temps for the temp and tach warning lights. Vapor can operate on regulated AC or 12V DC electrical systems, meaning it works on almost everything. An indicator dashboard accessory (022-PDA) is available if indicators are required, providing space for 4 indicator lights such as neutral and high beam. Vapors small size and ability to mount to any vehicle makes it a good choice for most applications..

Vehicle Fitment:

2014-2024 Honda CRF125F
2014-2024 Honda CRF125FB Big Wheel
2006-2009 Honda CRF150F
2012-2017 Honda CRF150F
2003-2009 Honda NPS50 Ruckus
2011-2020 Honda NPS50 Ruckus
2022 Honda NPS50 Ruckus
1981-1982 Honda XR250R
1984-2004 Honda XR250R
1996-2004 Honda XR400R
1985-2000 Honda XR600R
1993-2009 Honda XR650L
2012-2021 Honda XR650L
2008-2009 Kawasaki KLX140
2011-2020 Kawasaki KLX140
2017-2020 Kawasaki KLX140G
2008-2009 Kawasaki KLX140L
2011-2020 Kawasaki KLX140L
2021-2024 Kawasaki KLX140R
2021-2024 Kawasaki KLX140R F
2021-2024 Kawasaki KLX140R L
2020-2023 Kawasaki KLX230
2020-2024 Kawasaki KLX230R
2021-2023 Kawasaki KLX230R S
2022-2024 Kawasaki KLX230S
2009-2013 Polaris Ranger RZR 170
2014 Polaris RZR 170
2015-2021 Polaris RZR 170 EFI
2001-2007 Suzuki DR-Z250
2005-2009 Suzuki DR-Z400SM
2013-2018 Suzuki DR-Z400SM
1990-1993 Suzuki DR650S
2015-2024 Suzuki DR650S
1996-2009 Suzuki DR650SE
2011-2014 Suzuki DR650SE
2004-2018 Suzuki RM-Z250
2005-2018 Suzuki RM-Z450
2010 Suzuki RMX450Z
2017-2018 Suzuki RMX450Z
2000-2009 Yamaha TTR125L
2011 Yamaha TTR125L
2003-2009 Yamaha TTR125LE
2011-2024 Yamaha TTR125LE
