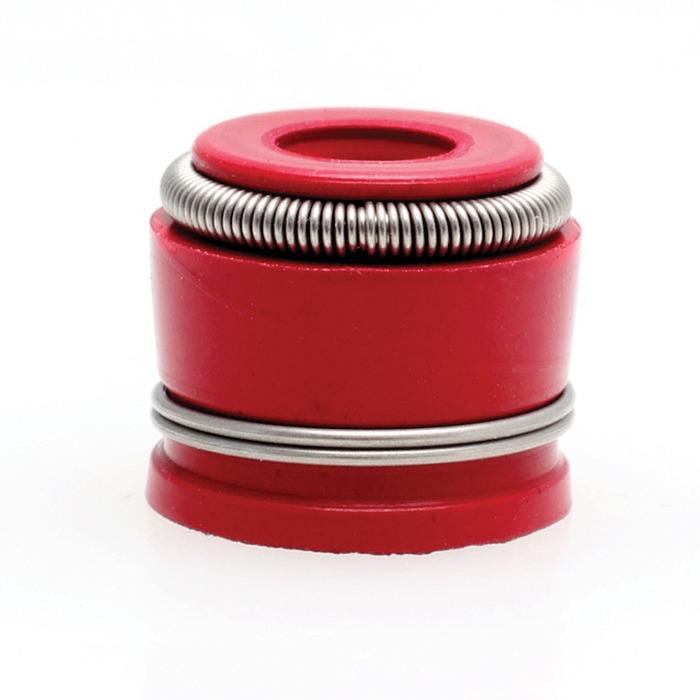

Kibblewhite Precision 71016-8 Valve Guide Seals - 8pk.

Type: Intake / Exhaust.
Material: Red Viton.

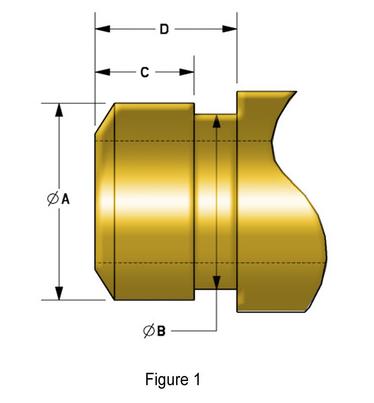

Reference: See Figure 1.
Stem Diameter: 5.5mm.
Overall Length: 0.320in.
Seal O.D.: 0.440in.
A: 0.358in.+/- 0.005in.
B: 0.320in.
C: 0.110in.
D: 0.200in.
OEM REF. P/N: 12209-422-005.
Note: Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit.

All valve seals are made of 100% solid Viton for long life. Meet or exceed OEM specifications. When using Kibblewhite spring kits, Kibblewhite valve seals must be used because of spring clearances.

Vehicle Fitment:

2009-2014 Arctic Cat Bearcat Z1 XT
2012-2014 Arctic Cat Bearcat Z1 XT GS
2011-2014 Arctic Cat Bearcat Z1 XT Limited
2007-2008 Arctic Cat Jaguar Z1 1100 EFI
2008 Arctic Cat Jaguar Z1 1100 EFI Sno Pro
2007 Arctic Cat Jaguar Z1 Early Build
2014 Arctic Cat M 9000 153
2014-2015 Arctic Cat M 9000 HCR 162
2014-2016 Arctic Cat M 9000 Limited 162
2014 Arctic Cat M 9000 Sno Pro 162
2016 Arctic Cat M 9000 Sno Pro 162
2012-2013 Arctic Cat ProClimb M 1100
2012 Arctic Cat ProClimb M 1100 Sno Pro
2012 Arctic Cat ProClimb M 1100 Sno Pro 50th
2012 Arctic Cat ProClimb M 1100 Sno Pro Limited
2012-2013 Arctic Cat ProClimb M 1100 Turbo
2012-2013 Arctic Cat ProClimb M 1100 Turbo HCR
2012-2013 Arctic Cat ProClimb M 1100 Turbo Sno Pro
2012 Arctic Cat ProClimb M 1100 Turbo Sno Pro 50th
2012-2013 Arctic Cat ProClimb M 1100 Turbo Sno Pro Limited
2012-2013 Arctic Cat ProCross F 1100 LXR
2012-2013 Arctic Cat ProCross F 1100 Sno Pro
2012 Arctic Cat ProCross F 1100 Sno Pro 50th
2012-2013 Arctic Cat ProCross F 1100 Sno Pro Limited
2012-2013 Arctic Cat ProCross F 1100 Turbo LXR
2012-2013 Arctic Cat ProCross F 1100 Turbo Sno Pro
2012 Arctic Cat ProCross F 1100 Turbo Sno Pro 50th
2012-2013 Arctic Cat ProCross F 1100 Turbo Sno Pro Limited
2013 Arctic Cat ProCross F 1100 Turbo Sno Pro RR
2013 Arctic Cat ProCross XF 1100 Crosstour
2012-2013 Arctic Cat ProCross XF 1100 LXR
2012-2013 Arctic Cat ProCross XF 1100 Sno Pro
2012 Arctic Cat ProCross XF 1100 Sno Pro 50th
2012-2013 Arctic Cat ProCross XF 1100 Sno Pro Limited
2013 Arctic Cat ProCross XF 1100 Turbo Crosstour
2012-2013 Arctic Cat ProCross XF 1100 Turbo LXR
2012-2013 Arctic Cat ProCross XF 1100 Turbo Sno Pro
2012 Arctic Cat ProCross XF 1100 Turbo Sno Pro 50th
2012-2013 Arctic Cat ProCross XF 1100 Turbo Sno Pro Limited
2010-2014 Arctic Cat TZ1
2010-2014 Arctic Cat TZ1 LXR
2009 Arctic Cat TZ1 Park
2008-2010 Arctic Cat TZ1 Touring
2008-2010 Arctic Cat TZ1 Touring LXR
2009-2014 Arctic Cat TZ1 Turbo LXR
2009-2010 Arctic Cat TZ1 Turbo LXR LE
2013 Arctic Cat TZ1 Turbo Touring LXR
2015 Arctic Cat XF 9000 Cross Country
2015 Arctic Cat XF 9000 Cross Country Limited
2014 Arctic Cat XF 9000 Cross Country Sno Pro
2014-2015 Arctic Cat XF 9000 Crosstour
2015 Arctic Cat XF 9000 High Country
2014-2015 Arctic Cat XF 9000 High Country Limited
2014 Arctic Cat XF 9000 High Country Sno Pro
2014-2015 Arctic Cat XF 9000 Limited
2014-2015 Arctic Cat XF 9000 LXR
2014-2015 Arctic Cat XF 9000 Sno Pro
2009-2010 Arctic Cat Z1 1100 EFI
2009-2011 Arctic Cat Z1 1100 EFI LXR
2011 Arctic Cat Z1 Sno Pro
2009-2010 Arctic Cat Z1 Turbo
2010-2011 Arctic Cat Z1 Turbo EXT
2010 Arctic Cat Z1 Turbo EXT Limited
2009-2011 Arctic Cat Z1 Turbo LXR
2009 Arctic Cat Z1 Turbo LXR LE
2009-2011 Arctic Cat Z1 Turbo Sno Pro
2010-2011 Arctic Cat Z1 Turbo Sno Pro Limited
2015 Arctic Cat ZR 9000 El Tigre
2014-2015 Arctic Cat ZR 9000 Limited 129
2014-2015 Arctic Cat ZR 9000 LXR
2014-2015 Arctic Cat ZR 9000 RR
2014-2015 Arctic Cat ZR 9000 Sno Pro 129
1980 Honda ATC185
1981-1983 Honda ATC200
1983 Honda CB1100F
1965 Honda CB160
1969-1973 Honda CB175 Super Sport
1971-1974 Honda CB500
1975-1977 Honda CB550F Super Sport
1974-1978 Honda CB550K
1979-1982 Honda CB750F Super Sport
1981-1982 Honda CB900F Super Sport
1979-1982 Honda CBX
2017 Honda CRF1000L Africa Twin
2017-2019 Honda CRF1000L Africa Twin ABS
2017-2019 Honda CRF1000L Africa Twin DCT
2018-2019 Honda CRF1000L2 Africa Twin Adventure Sports
2018-2019 Honda CRF1000L2 Africa Twin Adventure Sports DCT
2004-2009 Honda CRF100F
2011-2013 Honda CRF100F
2004-2009 Honda CRF80F
2011-2013 Honda CRF80F
2016-2021 Honda SXS1000M3 Pioneer 1000
2020-2021 Honda SXS1000M3 Pioneer 1000 Deluxe
2016-2019 Honda SXS1000M3 Pioneer 1000 EPS
2017-2019 Honda SXS1000M3 Pioneer 1000 Limited Edition
2021 Honda SXS1000M3 Pioneer 1000 Limited Edition
2021 Honda SXS1000M3 Pioneer 1000 Special Edition
2016-2021 Honda SXS1000M5 Pioneer 1000-5
2016-2021 Honda SXS1000M5 Pioneer 1000-5 Deluxe
2017-2021 Honda SXS1000M5 Pioneer 1000-5 Limited Edition
2021 Honda SXS1000M5 Pioneer 1000-5 Special Edition
2019-2022 Honda SXS10S2R Talon 1000R
2021 Honda SXS10S2R Talon 1000R Special Edition
2021-2022 Honda SXS10S2RD Talon 1000R FOX Live Valve
2019-2022 Honda SXS10S2X Talon 1000X
2021-2022 Honda SXS10S2XD Talon 1000X FOX Live Valve
2020-2022 Honda SXS10S4 Talon 1000X-4
2020-2022 Honda SXS10S4 Talon 1000X-4 FOX Live Valve
2021 Honda SXS10S4 Talon 1000X-4 Special Edition
1987-1988 Honda TRX250X
1991-1992 Honda TRX250X
1993-2008 Honda TRX300EX Sportrax
2009 Honda TRX300X
1999-2008 Honda TRX400EX Sportrax
2009 Honda TRX400X
2012-2014 Honda TRX400X
2004-2005 Honda TRX450R
1979-1985 Honda XL100S
1983-1984 Honda XL200R
1977-1979 Honda XL75
1980-1985 Honda XL80S
1981-1984 Honda XR100
1985-2003 Honda XR100R
1980-1984 Honda XR200
1981-2002 Honda XR200R
1991-1996 Honda XR250L
1984-2004 Honda XR250R
1996-2004 Honda XR400R
1973-1978 Honda XR75
1979-1984 Honda XR80
1985-2003 Honda XR80R
2015-2024 Indian Scout
2020 Indian Scout 100th Anniversary
2018-2024 Indian Scout Bobber
2020-2024 Indian Scout Bobber Twenty
2022-2024 Indian Scout Rogue
1997-2009 Kawasaki EX500 Ninja 500R
2008-2014 Kawasaki KFX450R
2008-2010 Kawasaki KLX450R
2006-2016 Kawasaki KX450F
1986-1987 Kawasaki ZX1000 Ninja 1000R
2016-2017 Polaris ACE 570
2018-2019 Polaris ACE 570 EPS
2016-2017 Polaris ACE 570 SP
2014-2021 Polaris Ranger 570
2014-2015 Polaris Ranger 570 Crew
2015 Polaris Ranger 570 Crew EPS
2015 Polaris Ranger 570 Crew EPS Full-Size
2014 Polaris Ranger 570 Crew EPS LE
2015 Polaris Ranger 570 Crew Full-Size
2015-2020 Polaris Ranger 570 EPS
2015-2016 Polaris Ranger 570 EPS Full-Size
2016 Polaris Ranger 570 EPS Hunter Edition
2014 Polaris Ranger 570 EPS LE
2015-2025 Polaris Ranger 570 Full-Size
2021 Polaris Ranger 570 Premium
2014-2015 Polaris Ranger 900 Crew
2014-2015 Polaris Ranger 900 Crew EPS
2014 Polaris Ranger 900 Crew EPS LE
2013-2015 Polaris Ranger 900 XP
2013 Polaris Ranger 900 XP Bronze Mist LE
2014 Polaris Ranger 900 XP Deluxe
2013-2015 Polaris Ranger 900 XP EPS
2013-2014 Polaris Ranger 900 XP EPS Browning LE
2015 Polaris Ranger 900 XP EPS Deluxe
2015 Polaris Ranger 900 XP EPS Hunter Deluxe Edition
2015 Polaris Ranger 900 XP EPS Hunter Edition
2013-2015 Polaris Ranger 900 XP EPS LE
2015 Polaris Ranger 900 XP EPS Northstar Edition
2013 Polaris Ranger 900 XP LE
2015 Polaris Ranger 900-6 Crew
2015 Polaris Ranger 900-6 Crew EPS
2022-2025 Polaris Ranger Crew 570 Full-Size
2016-2021 Polaris Ranger Crew 570-4
2016-2019 Polaris Ranger Crew 570-4 EPS
2020-2021 Polaris Ranger Crew 570-4 Premium
2016-2021 Polaris Ranger Crew 570-6
2016 Polaris Ranger Crew 570-6 EPS
2016 Polaris Ranger Crew 900-5
2016 Polaris Ranger Crew 900-5 EPS
2016 Polaris Ranger Crew 900-6
2016 Polaris Ranger Crew 900-6 EPS
2022-2025 Polaris Ranger Crew SP 570
2022-2025 Polaris Ranger Crew SP 570 NorthStar Edition
2022-2025 Polaris Ranger Crew SP 570 Premium
2017 Polaris Ranger Crew XP 1000
2022 Polaris Ranger Crew XP 1000 Big Game Edition
2017-2019 Polaris Ranger Crew XP 1000 EPS
2019 Polaris Ranger Crew XP 1000 EPS 20th Anniversary
2017-2019 Polaris Ranger Crew XP 1000 EPS High Lifter Edition
2020 Polaris Ranger Crew XP 1000 EPS NorthStar Edition
2017-2019 Polaris Ranger Crew XP 1000 EPS Northstar HVAC Edition
2019 Polaris Ranger Crew XP 1000 EPS Premium
2020-2022 Polaris Ranger Crew XP 1000 High Lifter Edition
2022 Polaris Ranger Crew XP 1000 NorthStar Big Game Edition
2021-2025 Polaris Ranger Crew XP 1000 NorthStar Edition Trail Boss
2021-2025 Polaris Ranger Crew XP 1000 NorthStar Premium
2021-2025 Polaris Ranger Crew XP 1000 NorthStar Ultimate
2020-2025 Polaris Ranger Crew XP 1000 Premium
2020-2025 Polaris Ranger Crew XP 1000 Texas Edition
2021-2022 Polaris Ranger Crew XP 1000 Trail Boss
2022 Polaris Ranger Crew XP 1000 Waterfowl Edition
2025 Polaris Ranger Crew XP 1000 Waterfowl Edition
2017-2019 Polaris Ranger Crew XP 900
2017-2019 Polaris Ranger Crew XP 900 EPS
2012 Polaris Ranger RZR XP 4 900
2012 Polaris Ranger RZR XP 4 900 EPS LE
2011-2013 Polaris Ranger RZR XP 900
2013 Polaris Ranger RZR XP 900 EPS LE
2013 Polaris Ranger RZR XP 900 EPS Walker Evans LE
2013 Polaris Ranger RZR XP 900 HO Jagged X Edition
2011-2013 Polaris Ranger RZR XP 900 LE
2022-2024 Polaris Ranger SP 570
2022-2025 Polaris Ranger SP 570 NorthStar Edition
2022-2025 Polaris Ranger SP 570 Premium
2017 Polaris Ranger XP 1000
2022 Polaris Ranger XP 1000 Big Game Edition
2017-2019 Polaris Ranger XP 1000 EPS
2019 Polaris Ranger XP 1000 EPS 20th Anniversary
2017-2019 Polaris R
