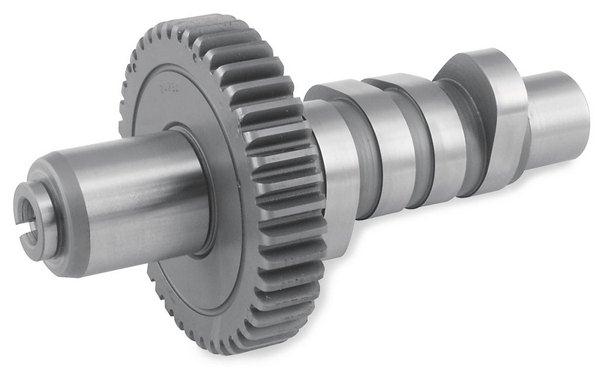

Andrews 212263 A2 Grind Camshaft


Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!

Cams bolt into 1966-84 (except 80-81) Big Twin engines with no head work; on 1980-81 engines the height of the stock H-D valve guides restricts spring travel (and cam lift) to .430in. or less.
More mid-range and high-end power; idle unaffected.
Spring travel and clearance, plus clearance at main bearing boss must be checked on *980 and later models.
Street/Drag, more mid-range and top end power, idles smoothly.
Will install in all Shovelheads with no headwork.
Recommended for use with hydraulics.
Intake Opening (degrees): 19.
Intake Closing (degrees): 43.
Exhaust Opening (degrees): 50.
Exhaust Closing (degrees): 18.
Intake Duration (degrees): 242.
Exhaust Duration (degrees): 248.
Intake Lift (in): .450.
Exhaust Lift (in): .450.
Intake TDC: .156.
Exhaust TDC: .142
Harley Davidson FLH Electra Glide 1970-1977
Harley Davidson FLHF 1970-1972
Harley Davidson FX Super Glide 1971-1977
Harley Davidson FXE Super Glide 1974-1977
Harley Davidson FXS Low Rider 1977

Please Note: Ships same business day to contiguous US if ordered by 12:15 PM Central Time!

Note: 212263
