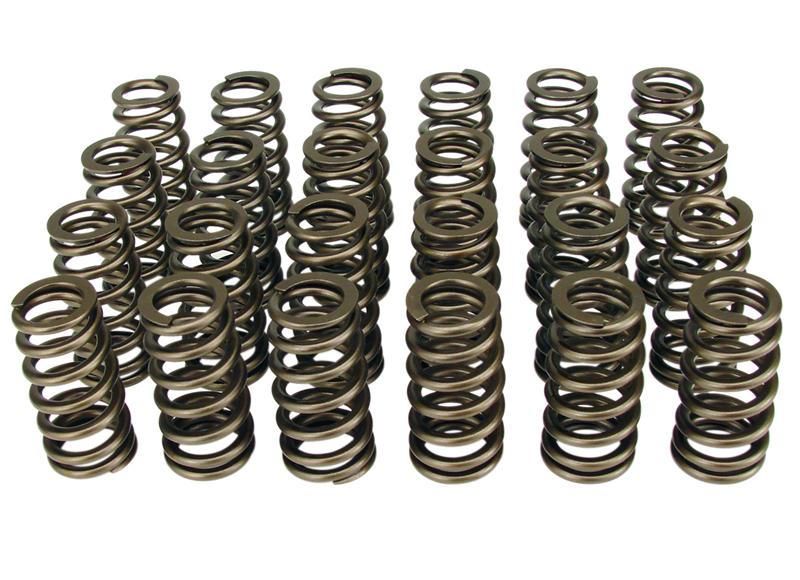

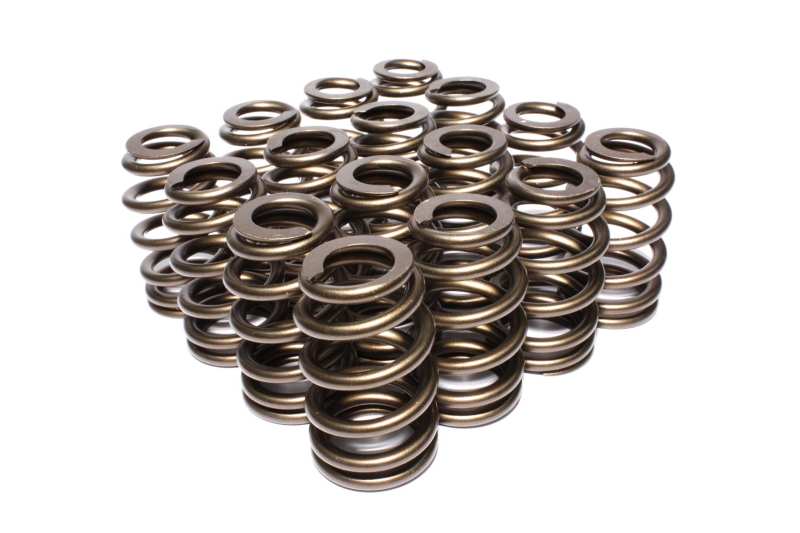

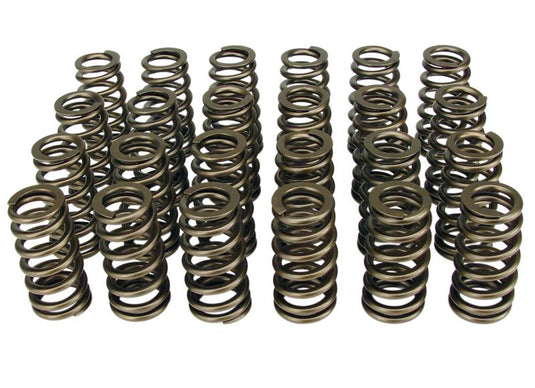

Comp Cams 26056-16 CCA Valve Spring Sets

COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.


Part #
OD
ID
Seat Load
Open Load
Coil Bind
Rate (Lbs./In.)
Titanium Retainer
Steel Retainer
Cup Seat
Shims


26056
Top Bottom
1.1851.454
.7311.000
160 @ 1.800
420 @ 1.150
1.100
400
785
703, 705
4696, 4697, 4704
4757
