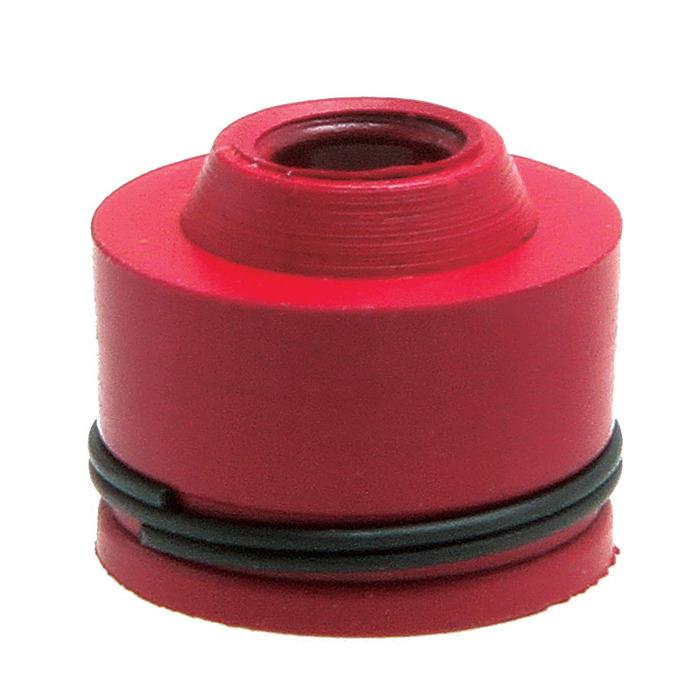

Kibblewhite Precision 71013-16 Valve Guide Seals - 16pk.

Material: Red Viton.

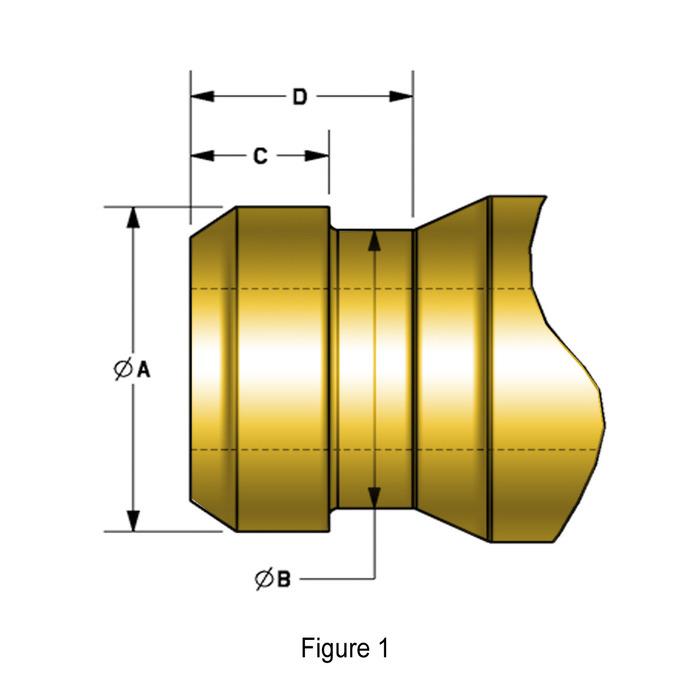

Reference: See Figure 1.
Seal Style 2.
Stem Diameter: 4.0mm.
Overall Length: 0.310in.
Seal O.D.: 0.380in.
A: 0.315in. +/-0.005in.
B: 0.270in.
C: 0.120in.
D: 0.235in.
OEM REF. P/N: 12209-KT7-013.
Note: Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit.

All valve seals are made of 100% solid Viton for long life. Meet or exceed OEM specifications. When using Kibblewhite spring kits, Kibblewhite valve seals must be used because of spring clearances.

Vehicle Fitment:

1991-1994 Honda CBR600F F2
1995-1996 Honda CBR600F F3
2001-2006 Honda CBR600F F4I
2006-2011 Kawasaki EX650 Ninja 650R
2008-2013 Kawasaki KLE650 Versys
2014-2016 Kawasaki KLE650 Versys ABS
2015-2016 Kawasaki KLE650 Versys ABS LT
1994-1996 Kawasaki KLX250R
2006-2007 Kawasaki KLX250S
2009-2010 Kawasaki KLX250S
2012-2014 Kawasaki KLX250S
2009-2010 Kawasaki KLX250SF
1997-2008 Kawasaki KLX300R
2019-2024 Kawasaki KX250
2024 Kawasaki KX250 50th Anniversary Edition
2004-2018 Kawasaki KX250F
2021-2024 Kawasaki KX250X
2004-2015 Kawasaki ZX1000 Ninja ZX-10R
2015 Kawasaki ZX1000 Ninja ZX-10R 30th Anniversary
2011-2015 Kawasaki ZX1000 Ninja ZX-10R ABS
2015 Kawasaki ZX1000 Ninja ZX-10R ABS 30th Anniversary
1991-2003 Kawasaki ZX750 Ninja ZX-7R
1994-2003 Kawasaki ZX900 Ninja ZX-9R
2004-2023 Suzuki RM-Z250
2023 Suzuki RM-Z250 RM Army Edition
