Kibblewhite Precision 71016-4 replacement valve Seals
Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!
All valve seals are made of 100% solid Viton for long life.
Meet or exceed OEM specifications.
When using Kibblewhite spring kits, Kibblewhite valve seals must be used because of spring clearances.
Sold per set of 4.
Type: Intake / Exhaust.
Material: Red Viton.

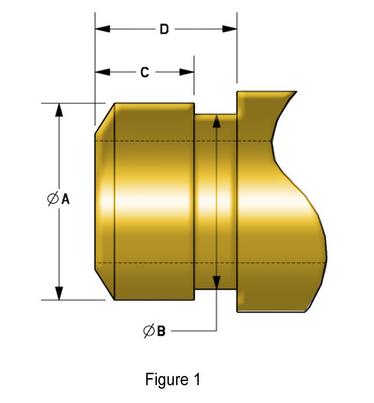

Reference: See Figure 1.
Quantity: Pkg. of 4 (Seal Style 4).
Stem Diameter: 5.5mm.
Overall Length: 0.320in..
Seal O.D.: 0.440in..
A: 0.358in.+/- 0.005in..
B: 0.320in..
C: 0.110in..
D: 0.200in..
OEM REF. P/N: 12209-422-005.
Note: Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
Honda CRF450R 2002-2008
Honda CRF450X 2012-2017
Honda CRF450X 2005-2009
Honda TRX250X 1991-1992
Honda TRX250X 1987-1988
Honda TRX300EX Sportrax 1993-2008
Honda TRX300X 2009
Honda TRX400EX Sportrax 1999-2008
Honda TRX400X 2012-2014
Honda TRX400X 2009
Honda TRX450R 2004-2005
Honda XR250R 1996-2002
Honda XR400R 1996-2004
Kawasaki KFX450R 2008-2014
Kawasaki KLX450R 2008-2010
Kawasaki KX450F 2006-2008
Polaris Ranger RZR XP 4 900 2013
Polaris Ranger RZR XP 4 900 EPS LE 2013
Polaris Ranger RZR XP 900 2013
Polaris Ranger RZR XP 900 LE 2013
Polaris RZR 4 900 EPS LE 2014
Polaris RZR 900 2014
Polaris RZR 900 EPS LE 2014
Polaris RZR XP 1000 EPS LE 2014
Polaris RZR XP 4 1000 EPS 2014
Suzuki LT-A750 KingQuad AXi Power Steering 2011-2020
Suzuki LT-A750 KingQuad AXi Power Steering LE 2014-2015
Suzuki LT-A750 KingQuad AXi Power Steering Rugged 2020
Suzuki LT-A750 KingQuad AXi Power Steering SE 2016-2020
Suzuki LT-A750 KingQuad AXi Power Steering SE Rugged 2017
Suzuki LT-A750 KingQuad AXi Power Steering SE+ 2019-2020
Suzuki LT-A750 KingQuad AXi Power Steering SE+ Rugged 2020
Suzuki LT-A750X KingQuad AXi 4x4 2011-2020
Suzuki LT-A750X KingQuad AXi 4x4 2008-2009
Suzuki LT-A750X KingQuad AXi 4x4 LE 2014
Suzuki LT-R450 QuadRacer 2006-2009
Suzuki RM-Z450 2007-2019
Yamaha XT250 1984
Yamaha XT350 1985-2000
All valve seals are made of 100% solid Viton for long life.
Meet or exceed OEM specifications.
When using Kibblewhite spring kits, Kibblewhite valve seals must be used because of spring clearances.
Sold per set of 4.
Type: Intake / Exhaust.
Material: Red Viton.
Reference: See Figure 1.
Quantity: Pkg. of 4 (Seal Style 4).
Stem Diameter: 5.5mm.
Overall Length: 0.320in..
Seal O.D.: 0.440in..
A: 0.358in.+/- 0.005in..
B: 0.320in..
C: 0.110in..
D: 0.200in..
OEM REF. P/N: 12209-422-005.
Note: Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
