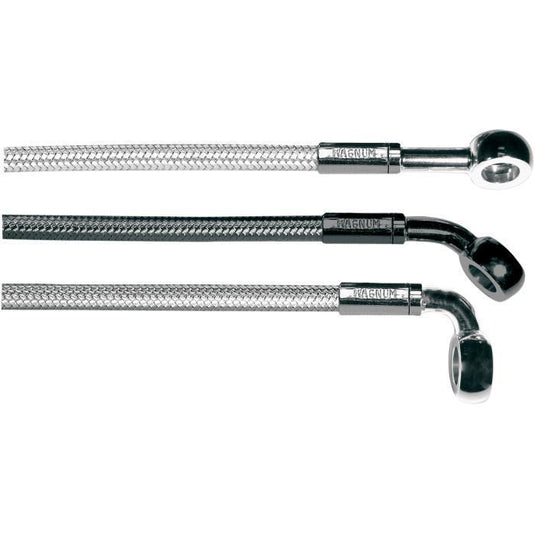

Magnum AS37615 Sterling Chromite II Designer Series ABS Front Upper Brake Line - 10mm. 180deg. Banjo - 15in.

The industrys best braid. Sterling Chromite II uses patented technology to look like chrome. Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor. All fittings are polished and chrome or black chrome plated. Inner PTFE tubing with 100% Kevlar coverage provides the ultimate in high performance by greatly reducing line expansion for excellent brake control and safety ratings. All brazed construction eliminates leaks, alignment problems, and unattractive threaded manifold connections for a sleek appearance. Non-ABS models utilize a superior two-piece design consisting of a direct fit lower assembly used in conjunction with alternative length upper lines joined together by AN -3 fittings for easy installation. Exceeds all DOT FMVSS-106 Specifications. Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment. Non-ABS Modelsone upper and lower kit is required two kits per bike. ABS Touring Modelsone upper, one mid-line and lower kit is needed three kits per bike. Made in the USA. HOW TO ORDER:. Lower lines are model specific. Use the chart to determine which line is required. Non-ABS model lowers: The lower line connection to the upper brake line is at the lower triple tree. Non-ABS model uppers: Upper line length is determined by measuring the routing path from the top of the lower triple tree to the master cylindersee diagram. ABS model lowers: The lower line follows the frame up and then back to the ABS controller. ABS model mid-line: A Designer ABS mid-line is required. The mid-line follows the frame from the ABS controller to the steering neck area. Hidden in the fairing or nacelle, an AN-3 fitting attaches to an Upper Designer line completing the connection to the master cylinder. The mid-line length is 49in.see diagram. ABS model uppers: Using the 49in. mid-line length as a reference, you can determine the additional line length needed to complete the upper brake line routing to the master cylinder. Sto.

Vehicle Fitment:

2024 Harley Davidson FLHRXS Road King Special
2019-2022 Harley Davidson FLHT Electra Glide Standard
2014-2019 Harley Davidson FLHTCU Electra Glide Ultra Classic
2015-2016 Harley Davidson FLHTCUL Electra Glide Ultra Classic Low
2019-2024 Harley Davidson FLHTCUTG Tri Glide Ultra
2014 Harley Davidson FLHTK Electra Glide Ultra Limited
2015-2024 Harley Davidson FLHTK Ultra Limited
2015-2019 Harley Davidson FLHTKL Ultra Limited Low
2014-2021 Harley Davidson FLHTKSE CVO Limited
2014-2023 Harley Davidson FLHX Street Glide
2014-2023 Harley Davidson FLHXS Street Glide Special
2015-2022 Harley Davidson FLHXSE CVO Street Glide
2022-2023 Harley Davidson FLHXST Street Glide ST
2024 Harley Davidson FLTRK Road Glide Limited
2016-2020 Harley Davidson XL1200CX Roadster
