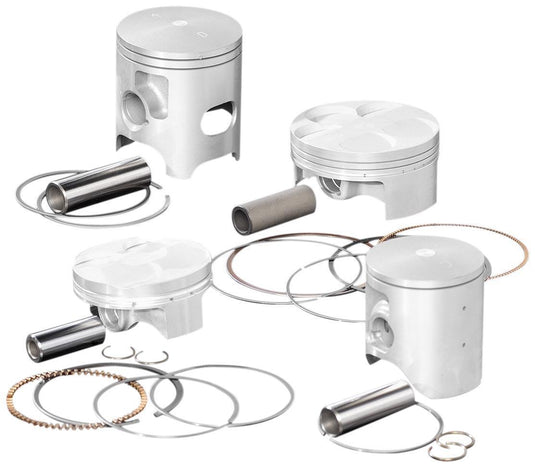

Wiseco 40115M08500 Piston Kit - Standard Bore 84.96mm, 10:1 Compression

Bore: 84.96mm
Compression: 10:1 Compression
Sizing: Standard Bore

SPECIFICATIONS.
Bore - Standard: 85.00mm.
Bore - Actual: 85.00mm.
Bore - Oversize: STD.
Stroke: 83.00mm.
Cylinders: 2.
Compression Ratio - Actual: 10.5:1 CR.
Skirt Coating: ArmorGlide.
ITEM CONTENTS.
8500XX - 85.00MM RING SET.
CW28 - Round Wire Pin Locks 21mm (Pair).
S656 - PISTON PIN-21MM X 50.85 X 13MM ID

All Wiseco Pistons are forged from high silicon, low expansion aluminum which offers superior strength, reduced weight, improved heat transfer, and longer life. Diamond turned finish from one of the many CNC computer controlled turning centers guarantees you a perfect finish with no size variation. Wiseco pistons can be installed in any of todays cylinder bore compositions. Wisecos state-of-the-art computerized manufacturing facility is dedicated to supplying both the high-perfomance racer and recreational enthusiast with the finest forged piston available in todays market place.

Vehicle Fitment:

2014-2016 Yamaha XVS950 Bolt
2015-2016 Yamaha XVS950 Bolt C-Spec
2014-2016 Yamaha XVS950 Bolt R-Spec
2009-2015 Yamaha XVS950 V Star 950
2009-2015 Yamaha XVS950CT V Star 950 Tourer
