Wiseco
Wiseco PK1017 Top End Kit - 1.00mm Oversize to 82.00mm, 10.25:1 Compression
Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!
Bore: 82.00mm
Compression: 10.25:1 Compression
Sizing: 1.00mm Oversize
SPECIFICATIONS.
Displacement: 359cc.
Bore - Standard: 81.00mm.
Bore - Actual: 82.00mm.
Bore - Oversize: 1.00mm.
Stroke: 68.00mm.
Compression Ratio - Actual: 10.25:1.
Note: Cylinder boring required.
Note: Workman.
ITEM CONTENTS.
3228XG - 82.00 mm Ring Set.
4393M08200 - Honda ATC/TRX350 85-89 10.25:1 3228XG.
CW21 - ROUND WIRE PIN LOCKS 21MM (PAIR).
S529 - PistonPin 21mm x 2.756in. NonChromed SW.
W5559 - TopEnd Gskt Kit Honda TRX & ATC350X.

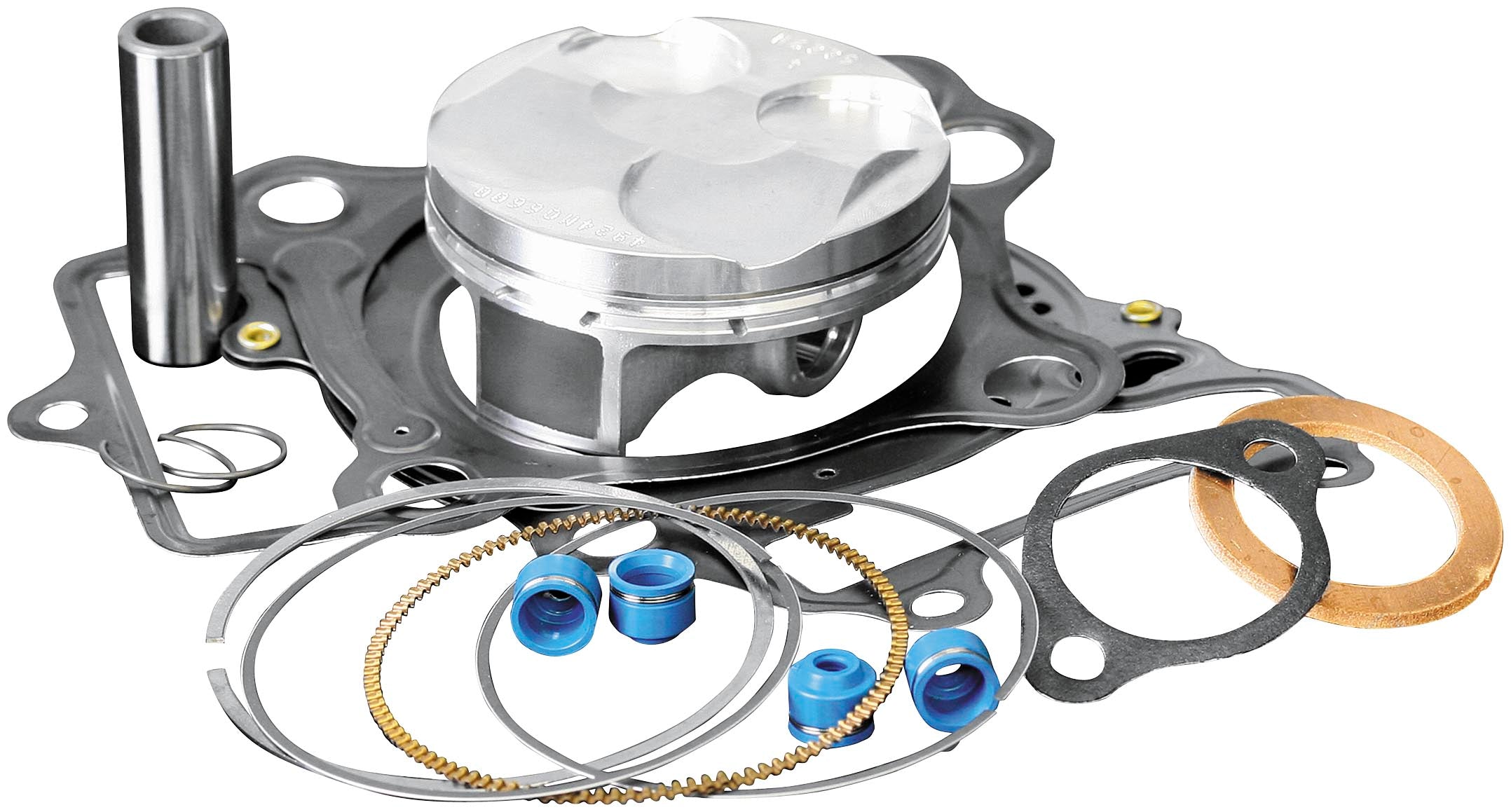

Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
1985-1986 Honda ATC350X
1986-1987 Honda TRX350
1989 Honda TRX350
1987-1989 Honda TRX350D
Bore: 82.00mm
Compression: 10.25:1 Compression
Sizing: 1.00mm Oversize
SPECIFICATIONS.
Displacement: 359cc.
Bore - Standard: 81.00mm.
Bore - Actual: 82.00mm.
Bore - Oversize: 1.00mm.
Stroke: 68.00mm.
Compression Ratio - Actual: 10.25:1.
Note: Cylinder boring required.
Note: Workman.
ITEM CONTENTS.
3228XG - 82.00 mm Ring Set.
4393M08200 - Honda ATC/TRX350 85-89 10.25:1 3228XG.
CW21 - ROUND WIRE PIN LOCKS 21MM (PAIR).
S529 - PistonPin 21mm x 2.756in. NonChromed SW.
W5559 - TopEnd Gskt Kit Honda TRX & ATC350X.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
1985-1986 Honda ATC350X
1986-1987 Honda TRX350
1989 Honda TRX350
1987-1989 Honda TRX350D
Please Note: Ships same business day to contiguous US if ordered by 12:15 PM Central Time!
Note: PK1017
