Wiseco
Wiseco PK1115 Top End Kit (686cc Big Bore) - 2.00mm Oversize to 102.00mm, 11:1 Compression
Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!
Bore: 102.00mm
Compression: 11.1 Compression
Sizing: 2.00mm Oversize
SPECIFICATIONS.
Displacement: 686cc.
Bore - Standard: 100.00mm.
Bore - Actual: 102.00mm.
Bore - Oversize: 2.00mm.
Stroke: 84.00mm.
Compression Ratio - Actual: 11:1.
Note: Cylinder boring required.

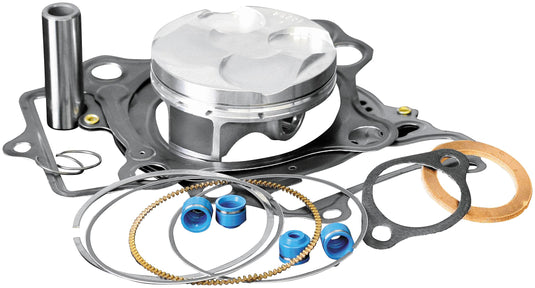

ITEM CONTENTS.
4014GFX - 101.956mm (4.014) Auto Ring Set- 1 cyl.
4811M10200 - Yam YFM660 Raptor/Grizzly/Rhino 11:1 CR.
CW22 - ROUND WIRE PIN LOCKS 22MM (PAIR).
S655 - PistonPin 22 x 57.15mm NonChromed SW.
W6429 - TopEndGsktKit Yam Grizz/Rhino 660 102mm.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2002-2008 Yamaha YFM660F Grizzly 4x4
2005-2006 Yamaha YXR66F Rhino 660
2006 Yamaha YXR66F Rhino 660 Exploring Edition
2006 Yamaha YXR66F Rhino 660 Special Edition
Bore: 102.00mm
Compression: 11.1 Compression
Sizing: 2.00mm Oversize
SPECIFICATIONS.
Displacement: 686cc.
Bore - Standard: 100.00mm.
Bore - Actual: 102.00mm.
Bore - Oversize: 2.00mm.
Stroke: 84.00mm.
Compression Ratio - Actual: 11:1.
Note: Cylinder boring required.
ITEM CONTENTS.
4014GFX - 101.956mm (4.014) Auto Ring Set- 1 cyl.
4811M10200 - Yam YFM660 Raptor/Grizzly/Rhino 11:1 CR.
CW22 - ROUND WIRE PIN LOCKS 22MM (PAIR).
S655 - PistonPin 22 x 57.15mm NonChromed SW.
W6429 - TopEndGsktKit Yam Grizz/Rhino 660 102mm.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2002-2008 Yamaha YFM660F Grizzly 4x4
2005-2006 Yamaha YXR66F Rhino 660
2006 Yamaha YXR66F Rhino 660 Exploring Edition
2006 Yamaha YXR66F Rhino 660 Special Edition
Please Note: Ships same business day to contiguous US if ordered by 12:15 PM Central Time!
Note: PK1115
