Wiseco PK1239 Top End Kit - Standard Bore 77.00mm, 14.1:1 High Compression
Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!
Bore: 77.00mm
Compression: 14.1:1 High Compression
Sizing: Standard Bore
SPECIFICATIONS.
Displacement: 250cc.
Bore - Standard: 77.00mm.
Bore - Actual: 77.00mm.
Bore - Oversize: STD.
Stroke: 53.60mm.
Cylinders: 1.
Cyl. Type: 14.1:1.
Dome Volume: -4.1cc.
ITEM CONTENTS.
4843M07700 - KX250F 04-05/ Suz RMZ250 04-06 14.1:1.
7700YC - 77.00 mm Ring Set .8 x 1.5mm.
CW16 - ROUND WIRE PIN LOCKS 16MM (PAIR).
S677 - PistonPin 16 x 40mm NonChromed TW.
W6255 - TopEndGsktKit KX250F 04-08/RMZ25004-06.

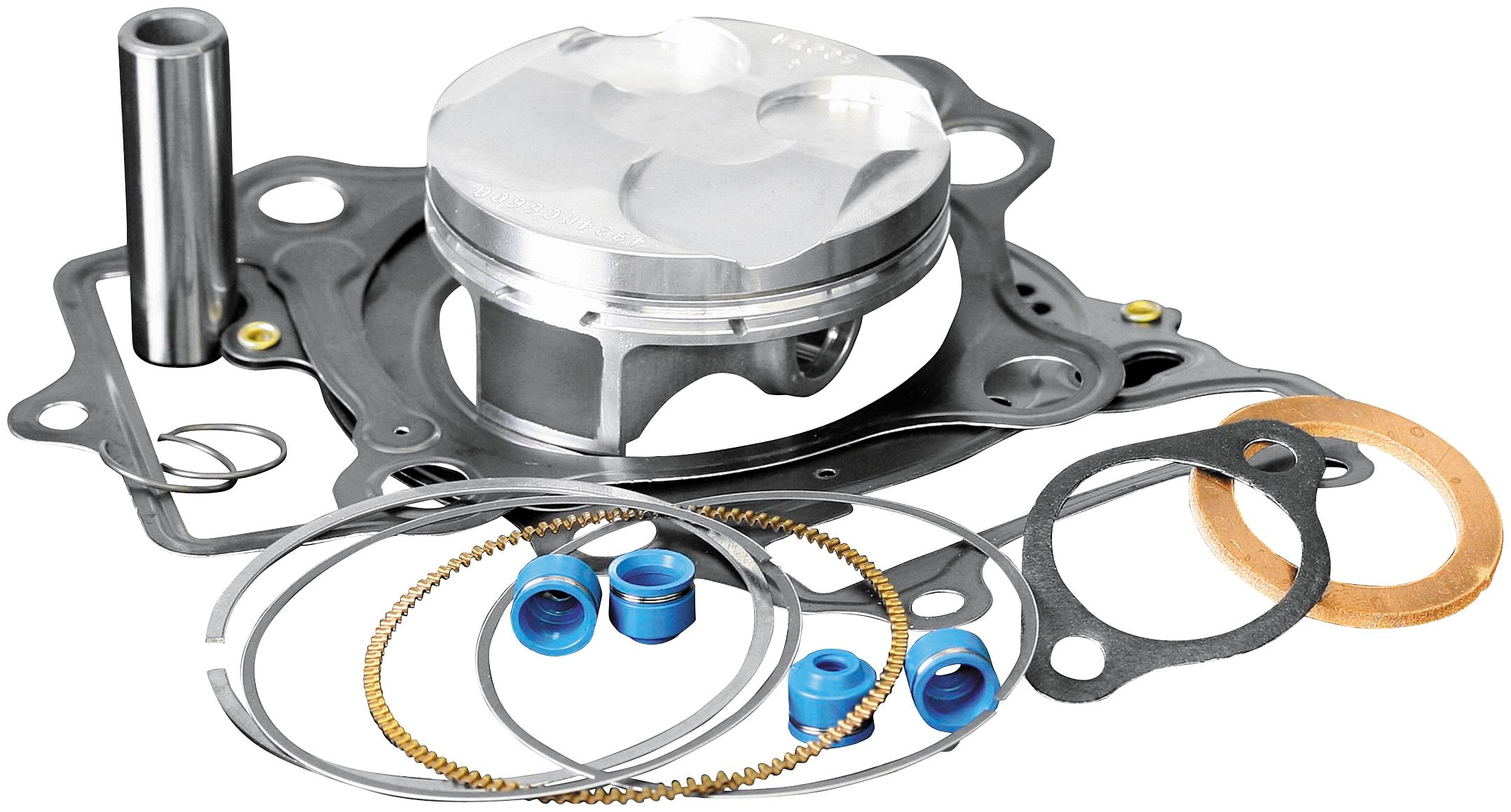

Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2004-2005 Kawasaki KX250F
2004-2006 Suzuki RM-Z250
Bore: 77.00mm
Compression: 14.1:1 High Compression
Sizing: Standard Bore
SPECIFICATIONS.
Displacement: 250cc.
Bore - Standard: 77.00mm.
Bore - Actual: 77.00mm.
Bore - Oversize: STD.
Stroke: 53.60mm.
Cylinders: 1.
Cyl. Type: 14.1:1.
Dome Volume: -4.1cc.
ITEM CONTENTS.
4843M07700 - KX250F 04-05/ Suz RMZ250 04-06 14.1:1.
7700YC - 77.00 mm Ring Set .8 x 1.5mm.
CW16 - ROUND WIRE PIN LOCKS 16MM (PAIR).
S677 - PistonPin 16 x 40mm NonChromed TW.
W6255 - TopEndGsktKit KX250F 04-08/RMZ25004-06.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2004-2005 Kawasaki KX250F
2004-2006 Suzuki RM-Z250
Please Note: Ships same business day to contiguous US if ordered by 12:15 PM Central Time!
Note: PK1239
