Wiseco

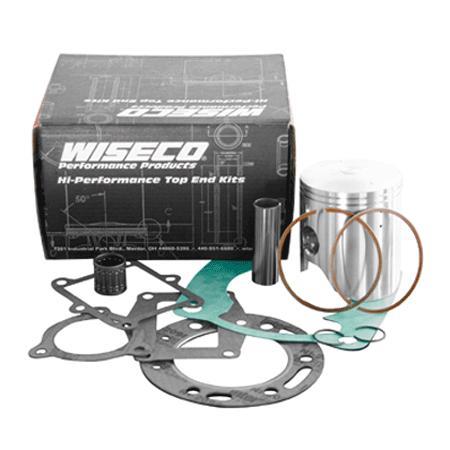

Wiseco PK1882 Top End Kit - Standard Bore 45.00mm
Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!
Bore: 45.00mm
Sizing: Standard Bore
SPECIFICATIONS.
Displacement: 85cc.
Bore - Standard: 45.00mm.
Bore - Actual: 45.00mm.
Bore - Oversize: STD.
Stroke: 40.8mm.
Cylinders: 1.
Note: Pro-Lite.
Note: Nikasil Bore.
ITEM CONTENTS.
1772CS - 45.00 mm Ring.
864M04500 - KTM 65 SX/XC 09-17 ProLite 1772CS.
B1042 - Top End Bearing 12 x 15 x 16.3mm.
CW12 - ROUND WIRE PIN LOCKS 12MM (PAIR).
S595 - PistonPin 12mm x 1.417 NonChromed SW.
W6810 - TopEnd Gasket Kit KTM 65 SX/EXC 09-17.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2021-2024 Gas Gas MC 65
2017-2024 Husqvarna TC65
2009-2024 KTM 65 SX
2009 KTM 65 XC
Bore: 45.00mm
Sizing: Standard Bore
SPECIFICATIONS.
Displacement: 85cc.
Bore - Standard: 45.00mm.
Bore - Actual: 45.00mm.
Bore - Oversize: STD.
Stroke: 40.8mm.
Cylinders: 1.
Note: Pro-Lite.
Note: Nikasil Bore.
ITEM CONTENTS.
1772CS - 45.00 mm Ring.
864M04500 - KTM 65 SX/XC 09-17 ProLite 1772CS.
B1042 - Top End Bearing 12 x 15 x 16.3mm.
CW12 - ROUND WIRE PIN LOCKS 12MM (PAIR).
S595 - PistonPin 12mm x 1.417 NonChromed SW.
W6810 - TopEnd Gasket Kit KTM 65 SX/EXC 09-17.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2021-2024 Gas Gas MC 65
2017-2024 Husqvarna TC65
2009-2024 KTM 65 SX
2009 KTM 65 XC
