Wiseco PK1884 Top End Kit (Pro-Lite Single Ring) - Standard Bore 66.40mm

Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!

Bore: 66.40mm
Sizing: Standard Bore

SPECIFICATIONS.
Displacement: 250cc.
Bore - Standard: 66.4mm.
Bore - Actual: 66.4mm.
Bore - Oversize: STD.
Stroke: 72.0mm.
Cylinders: 1.
Skirt Coating: ArmorGlide.
Treatment: Hard Coat Anodize.
Ring Kit - Top Coating: Titanium Nitride.
Note: Nikasil Bore.
Note: Single Ring.
Note: Pro-Lite XPS Series.

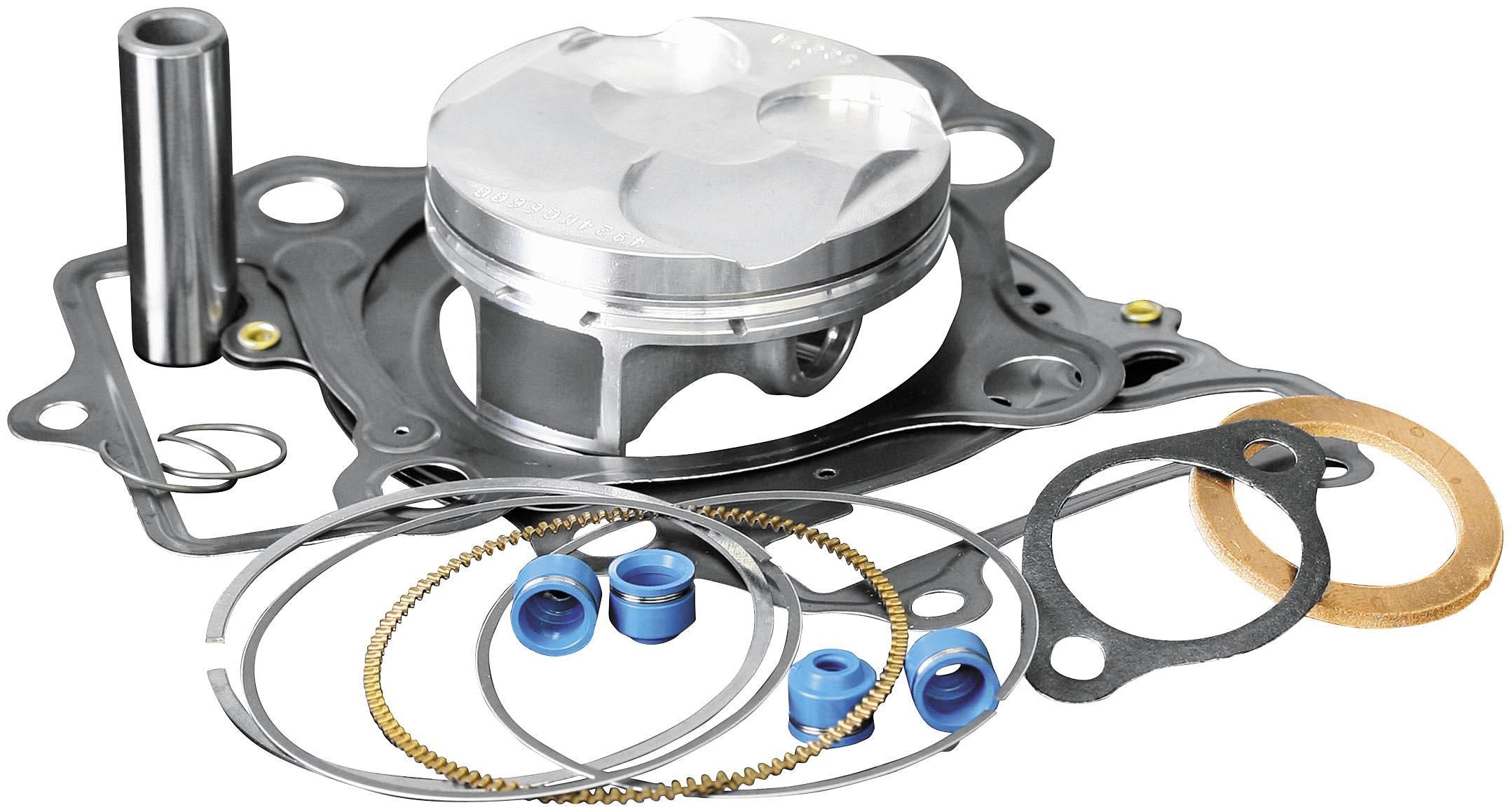

ITEM CONTENTS.
2614CSA - 66.40 mm TiN Coated Ring.
824M06640 - KTM 250SX 03-17,250EXC06-17 2614CSA.
B1037 - Top End Bearing 18 x 22 x 19.8mm.
CW18 - ROUND WIRE PIN LOCKS 18MM (PAIR).
S508 - PistonPin 18mm x 2.106in. NonChromed TW.
W6622 - TopEnd Gskt Kit KTM 250SX/ 300 XC/XC-W.

Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.

2014-2024 Husqvarna TC250
2014-2018 Husqvarna TE250
2018-2023 Husqvarna TE250i
2007-2016 KTM 250 SX
2007-2014 KTM 250 XC
2007-2015 KTM 250 XC-W
