Wiseco

Wiseco PK1894 Top End Kit - Standard Bore 78.00mm, 13.9:1 Compression

$292.97

Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!

Bore: 78.00mm
Compression: 13.9:1 Compression
Sizing: Standard Bore

SPECIFICATIONS.
Displacement: 250cc.
Bore - Standard: 78.00mm.
Bore - Actual: 78.00mm.
Bore - Oversize: STD.
Stroke: 52.3mm.
Cylinders: 1.
Compression Ratio - Actual: 13.9:1.
Skirt Coating: ArmorGlide.

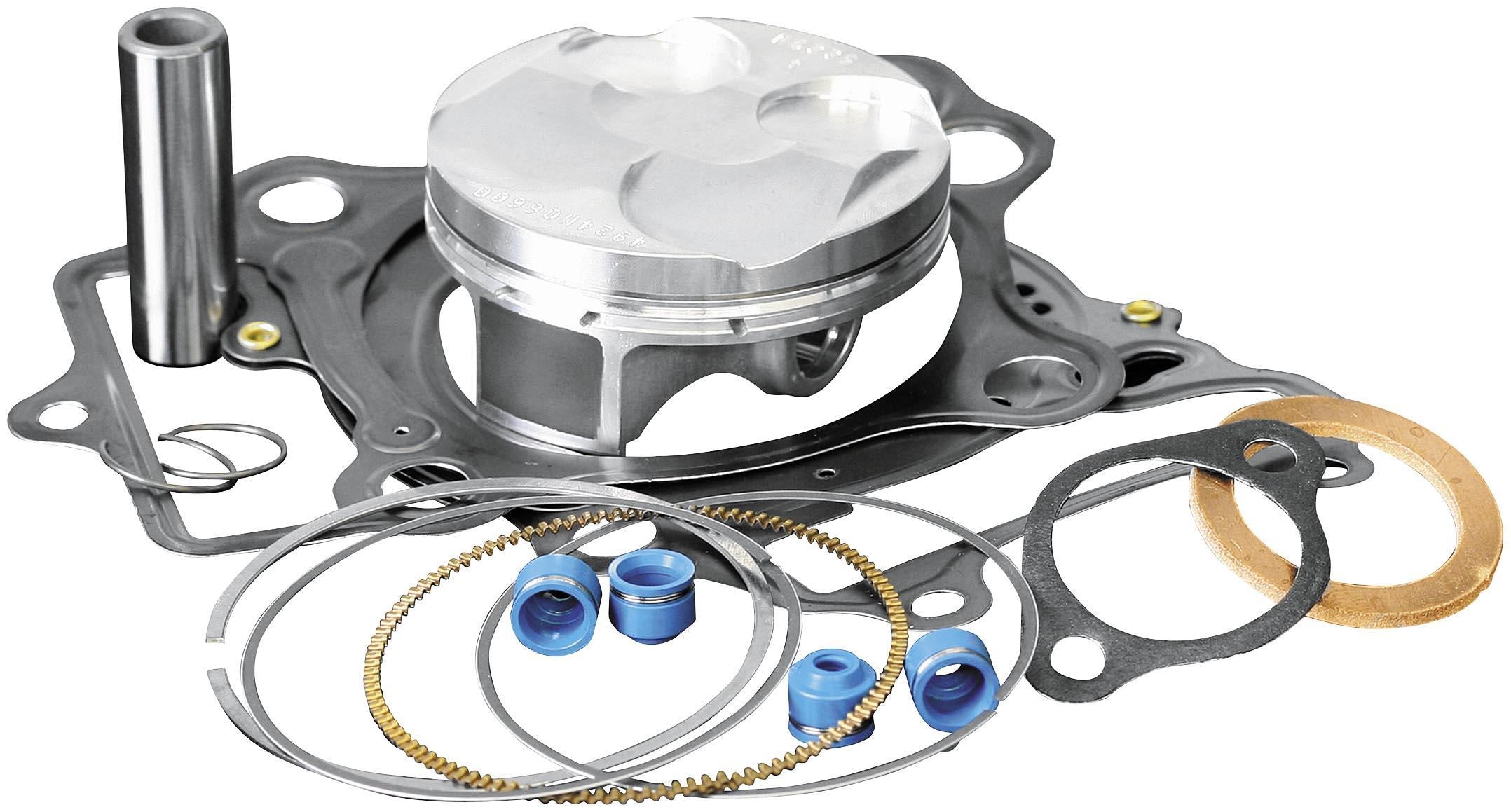

ITEM CONTENTS.
40074M07800 - KTM 250SX-F 13-15, EXC-F 14 13.9:1 CR.
7800YB - 78.00 mm Ring Set .9mm X 1.5mm.
S677 - PistonPin 16 x 40mm NonChromed TW.
W6883 - Round Wire Retainer 16mm x .049in. (pair).
W6916 - TopEnd Gasket Kit KTM 250SX-F 13-15.

Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.

2014 Husaberg FE250
2014-2022 Husqvarna FC250
2014-2019 Husqvarna FE250
2017-2019 KTM 250 EXC-F
2013-2015 KTM 250 SX-F

Please Note: Ships same business day to contiguous US if ordered by 12:15 PM Central Time!

Note: PK1894
