Wiseco PK1898 Top End Kit - Standard Bore 95.00mm, 13.5:1 Compression
Generally ships to addresses in the contiguous United States the same business day if ordered by 12:15PM Central Time!
Bore: 95.00mm
Compression: 13.5:1 Compression
Sizing: Standard Bore
SPECIFICATIONS.
Displacement: 450cc.
Bore - Standard: 95.00mm.
Bore - Actual: 95.00mm.
Bore - Oversize: STD.
Stroke: 63.4mm.
Cylinders: 1.
Compression Ratio - Actual: 13.5:1.
Skirt Coating: ArmorGlide.

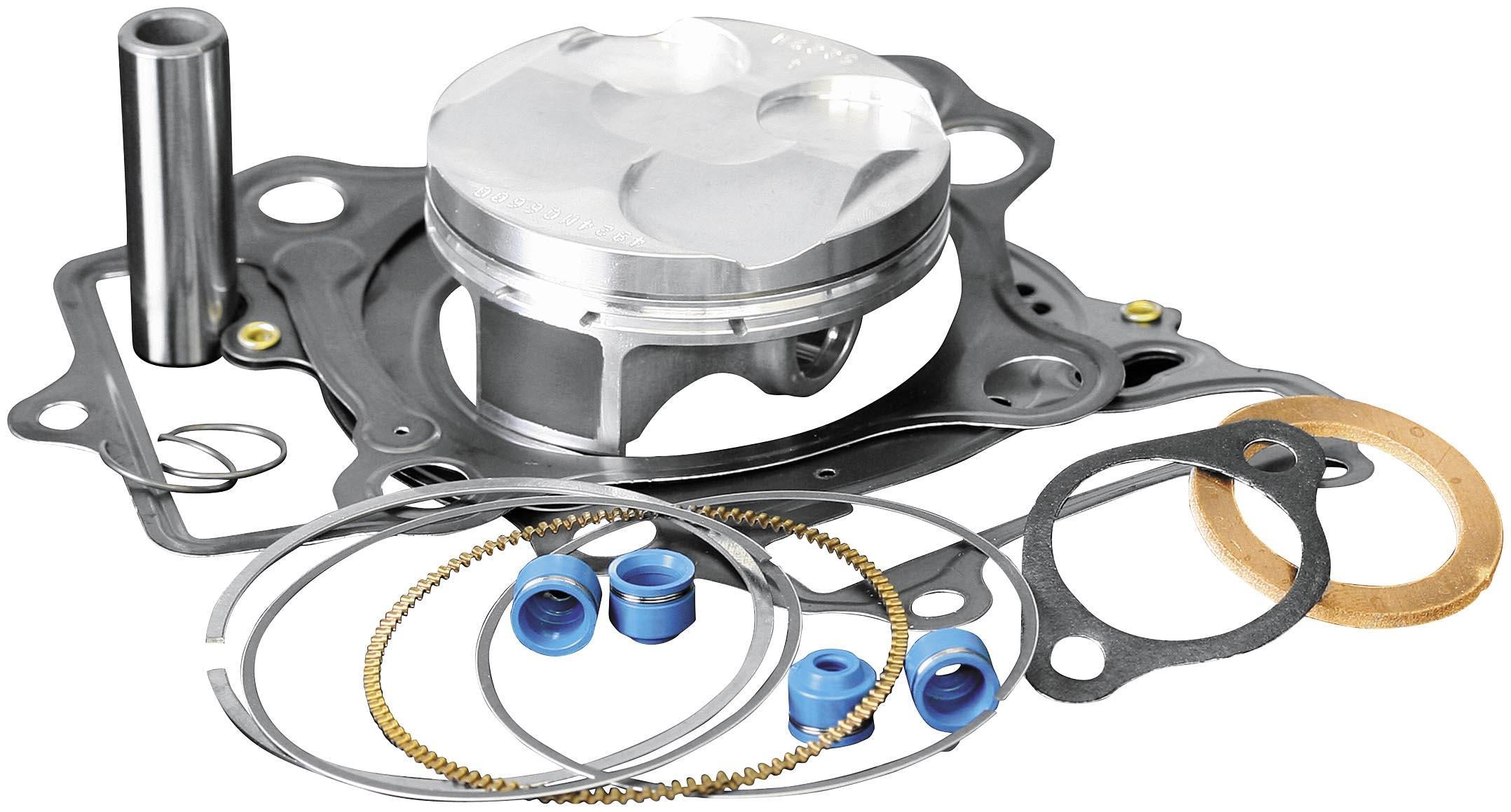

ITEM CONTENTS.
40117M09500 - KTM 450SX-F 13-17 13.5:1 CR.
9500ZV - 95.00 mm Ring Set - 1.0 x 2.0mm.
CW19 - ROUND WIRE PIN LOCKS 19MM (PAIR).
Ring - Set.
S682 - PistonPin 19 x 45mm NonChromed TW.
W6913 - TopEnd Gskt Kit KTM 450SX-F 12-16.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2014-2017 Husqvarna FC450
2017 Husqvarna FX450
2013-2018 KTM 450 SX-F
Bore: 95.00mm
Compression: 13.5:1 Compression
Sizing: Standard Bore
SPECIFICATIONS.
Displacement: 450cc.
Bore - Standard: 95.00mm.
Bore - Actual: 95.00mm.
Bore - Oversize: STD.
Stroke: 63.4mm.
Cylinders: 1.
Compression Ratio - Actual: 13.5:1.
Skirt Coating: ArmorGlide.
ITEM CONTENTS.
40117M09500 - KTM 450SX-F 13-17 13.5:1 CR.
9500ZV - 95.00 mm Ring Set - 1.0 x 2.0mm.
CW19 - ROUND WIRE PIN LOCKS 19MM (PAIR).
Ring - Set.
S682 - PistonPin 19 x 45mm NonChromed TW.
W6913 - TopEnd Gskt Kit KTM 450SX-F 12-16.
Contains all the necessary components for overboring or rebuilding your top end. Feature forged pistons, rings, wrist pins, circlips and top end gasket set.
2014-2017 Husqvarna FC450
2017 Husqvarna FX450
2013-2018 KTM 450 SX-F
Please Note: Ships same business day to contiguous US if ordered by 12:15 PM Central Time!
Note: PK1898
